Architectural Overview

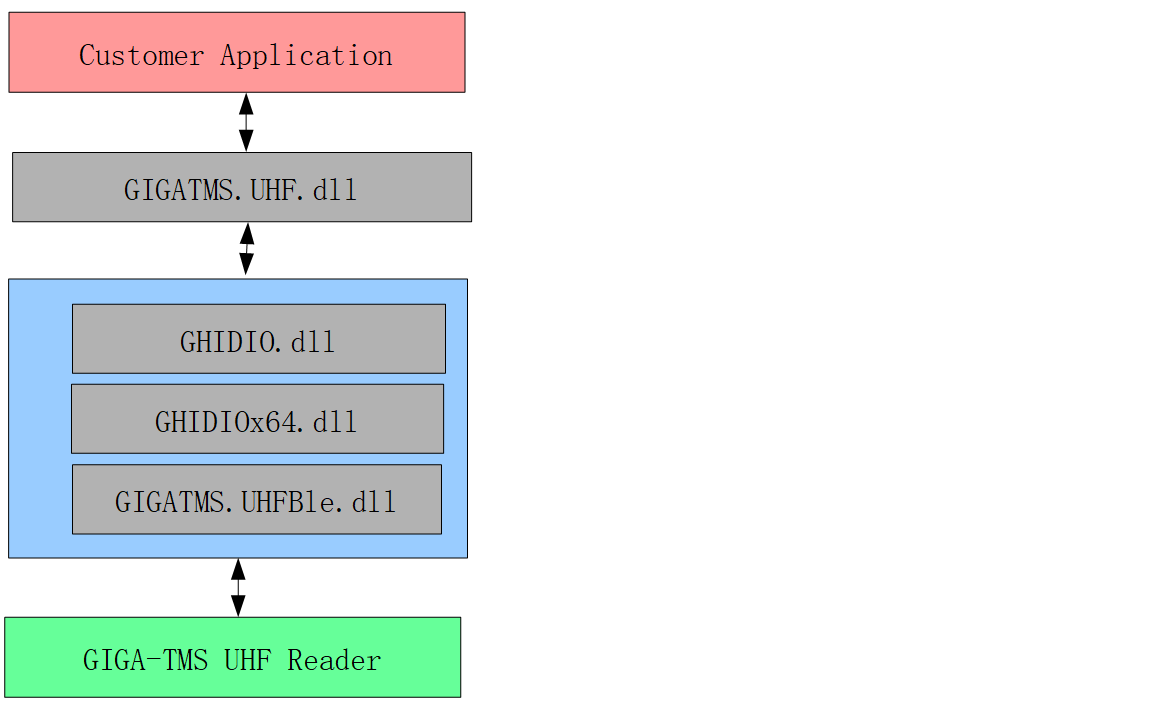

GIGA-TMS UHF SDK Driver uses a multi-layered architecture in which your application interacts with the Gen2 Tag via UHF reader through the 4 dlls: GIGATMS.UHF.dll, GHIDIO.dll, GHIDIOx64.dll and GIGATMS.UHFBle.dll.

um 800l dll

This architectural has following components:

  • Customer Application The application that use the APIs of GIGATMS.UHF.dll to communicate with UHF reader.

  • GIGATMS.UHF.dll The driver provides interface between application and GHIDIO.dll (or GHIDIOx64.dll). It parse the UHF commands to a set of APIs for application uses.

  • GHIDIO.dll The driver privides USB communication between GIGATMS.UHF.dll and UHF reader via the USB port. This driver is for x86 platform.

  • GHIDIOx64.dll The driver privides USB communication between GIGATMS.UHF.dll and UHF reader via the USB port. This driver is for x64 platform.

  • GIGATMS.UHFBle.dll The driver provides interface between GIGATMS.UHF.dll and BLE capable reader. It parse the UHF commands to a set of APIs for GIGATMS.UHF.dll uses.

  • UHF Reader The UHF reader that can access the Gen2 tag.
