ArchitecturalOverview

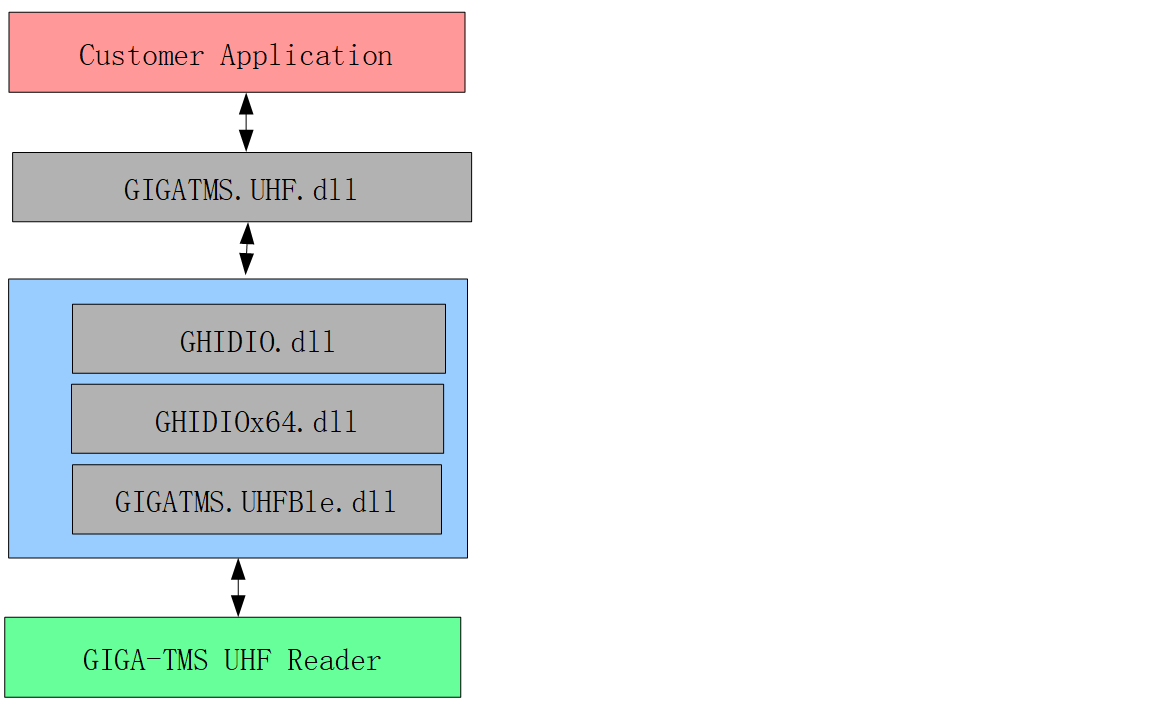

GIGA-TMS UHF SDK Driver uses a multi-layered architecture in which your application interacts with Gen 2 Tags via an UHF reader through the 4 dlls: GIGATMS.UHF.dll, GHIDIO.dll, GHIDIOx64.dll and GIGATMS.UHFBle.dll.

um 800l dll

This architectural has following components:

  • Customer Application The application uses the APIs of GIGATMS.UHF.dll to manipulate UHF readers.

  • GIGATMS.UHF.dll The driver provides interfaces between an application and GHIDIO.dll (or GHIDIOx64.dll). It parses the UHF commands to a set of APIs for the application uses.

  • GHIDIO.dll The driver provides USB communication between GIGATMS.UHF.dll and UHF readers via the USB port. This driver is for the x86 platform.

  • GHIDIOx64.dll The driver provides USB communication between GIGATMS.UHF.dll and UHF readers via the USB port. This driver is for the x64 platform.

  • GIGATMS.UHFBle.dll The driver provides an interface between GIGATMS.UHF.dll and BLE-enabled readers. It parses the UHF commands to a set of APIs for GIGATMS.UHF.dll uses.

  • UHF Reader The UHF reader can access the Gen 2 tag.
